Designing a layout that would suit our needs as well as conform to the constraints of the original structure of the bus took some time to do. We tried to keep some of the features of the bus such as the roof hatches, portions of the overhead bag racks and the jet air ventilation. As we have three young children a space for them was also an important consideration as was having reasonable bathroom facilities. Having for many years slept on a queen size bed it was with some sadness that a double would have to suffice. The children would also be sleeping on narrower and shorter beds.

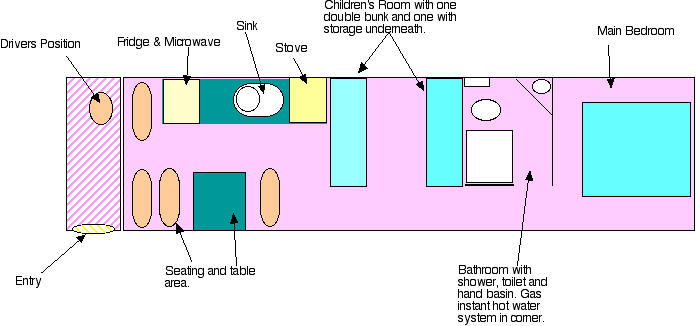

The design below, although not to scale, gives a reasonable image of our planned layout. It has four areas or rooms being the kitchen living area, children's bedroom, bathroom and main bedroom. All rooms have windows and the bathroom encompasses the rear roof hatch for extra ventilation. The instant hot water system is located in the bathroom with the flue through the roof.

Image of floor plan

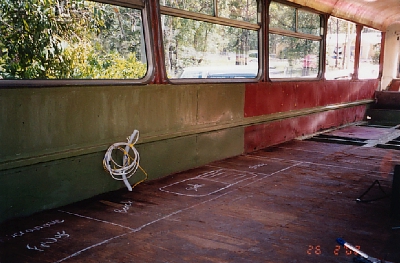

We used chalk to mark out various floor plans to see what we liked best and to also see what was possible within the limitations of the bus structure and our abilities.

We continued work on such things as repairing rust damage and the roof whilst we walked around the different floor plans.
