EQUIPMENT

CUNJURONG/MANYANA RURAL FIRE SERVICE is equipped with
up to date fire fighting tools, described below.

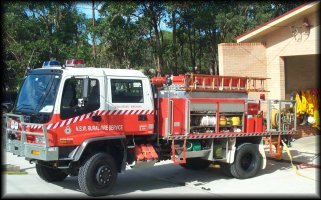

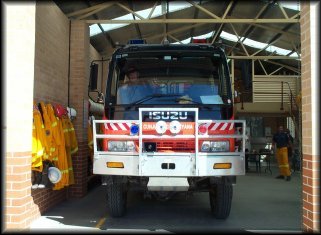

CATEGORY 1 HEAVY TANKER

SPECIFICATIONS


CAB CHASSIS	4X4 Crew Cab
G.V.M.	12,500 kg
WHEEL BASE	4200
CREW	7 Persons
ENGINE	6 cylinder OHV diesel 6494cc Displacement Bore x Stroke: 105mm x 125mm Nett Power: 120KW @ 2900 rpm Nett Torque: 431Nm @1800 rpm
TRANSMISSION	GEARBOX: manuel 6 speed direct drive,constant mesh synchromesh on 2nd-6th. RATIOS: 7.166, 4526, 2.919, 1.954, 1.254, 1.000, to , Reverse 7.276:1. Transfer Case = 2 speed RATIOS: High - 1.000:1 & Low - 2.091:1 No-Spin Differential in Rear Axel.
BODY	Fully galavanised steel tray frame with aluminium chequer plate floor. Modular aluminium lockers and side crew protection panels. Two 60m live hosereels. Storage for canvas hose, branches, knap- sacks, rakehoes, drip torches, extinguishers and stand pipes.

PUMP

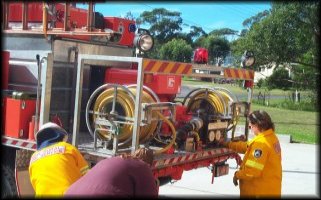

L-R Chappy Critcher, Jodie Buckley and Leanne McDonald

MAIN PUMP	Two stage centrifugal pump close to a 3 cylinder 33kw (cont.) Silent pack deisel engine
PUMP DUTY	1450 litres/min. max. flow. 1350 litres/min. @ 550 kPa. 1300 litres/min. @ 700 kPa. Closed pump pressure: 1500 kPa.
PRIMER	12v rotary vane primer.
AUX. PUMP	Single stage pump close coupled to a 4kw single cylinder petrol engine.
TANK	3300 litre galvanised steel tank.
FOAM	Foam induction proportioner with 3 x 20 litre foam concentrate storage.

VARIOUS TOOLS

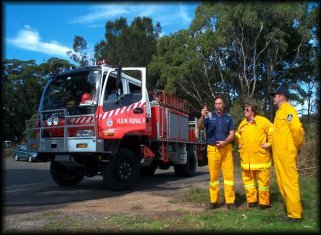

Top Left (L-R): Examining wind speed and direction are... Lex Frew, Leanne McDonald and Chappy Critcher.
Top Right: Sprocko Cottam (in truck) doing maintenance check on the GLOBAL POSITIONING SYSTEM (G.P.S) and RADIOS, and Lex Frew inside shed.

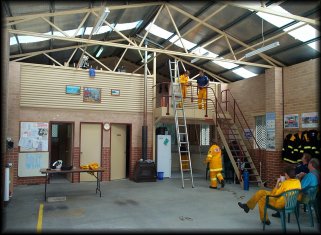

Our shed is large enough to hold all equipment, and spacious enough for all weather training and activities. It has a fully equipped kitchen, also, female, and male bathrooms.

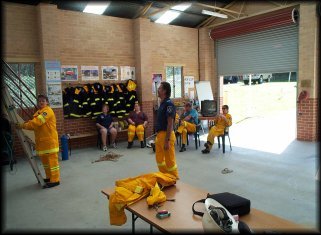

Top Left (L-R): Leanne Mcdonald, Ellie Cottam, Jodie Buckley, Lex Frew, Brian Lambert, Kylie Freeman.

Top Left: Showing selection of nozzles are......
L-R Ellie Cottam, Tonia Worthington, Lex Frew (capt), and Edna Armour

On the hose are.....
L-R Brian Lambert and Michelle Wrobel
